Migrating Citrix ADC (Netscaler) Exchange Load Balancing to LoadMaster

Posted on

Today, we are going to provide technical guidance on how to migrate your Citrix Netscaler Exchange Virtual Server using NetScaler AAA Session Policy Virtual Server, to a Kemp Exchange Virtual Service using Kemp’s Edge Security Pack (ESP). This is a valuable technical guide if you currently use Citrix Netscaler products and are interested in learning about migrating an advanced service that includes AAA Session Policies. In this walk-through, we are using our Exchange OWA service with Forms Based Client Side and Forms Based Server Side.

Architecture/Design Requirements

  • Microsoft Exchange backend with OWA configured for “Forms Based”
  • Kemp LoadMaster with Enterprise or Enterprise Plus support package (or Trial license)

Terminology

Citrix Netscaler uses different terms for some functions and technologies. Below is a chart that maps the Netscaler terms with what is used within Kemp documentation.

Citrix Netscalerkemp LoadMaster
Virtual Servers Virtual Services
SSL Profile SSL Acceleration
Content Switch Policies Content Rules
Monitors Health Checks
AAA Virtual Server Policies ESP
Service Group Sub Virtual Service
Group Member Real Servers

Template

Kemp provides an Exchange configuration Template which comes preconfigured with all the required configuration parameters. This makes the Kemp configuration easy since only customer unique information needs to be provided (IP addresses, server names, etc.). To download our popular application Templates, please navigate here. Select the corresponding Template depending on your Exchange version. In this case, we have chosen Exchange 2016.

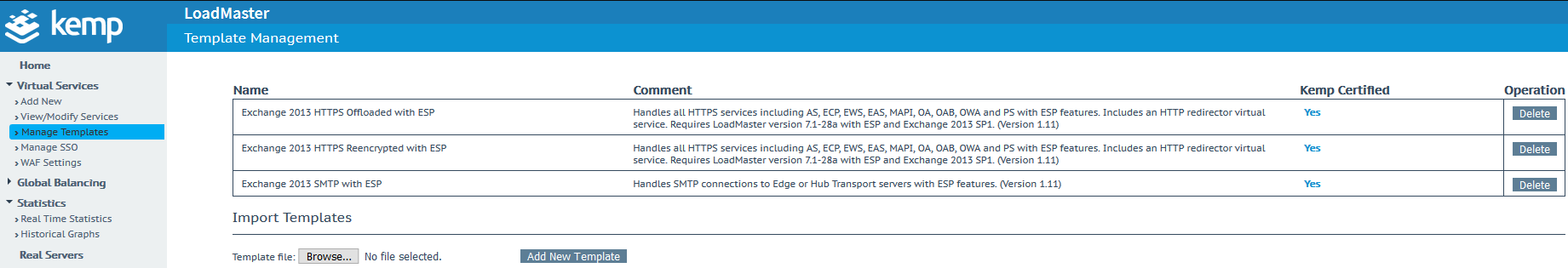

On the Kemp load balancer, to import the template, navigate to Virtual Services > Templates > Browse > Import on the left-hand menu.

Exporting your Netscaler SSL Certificates

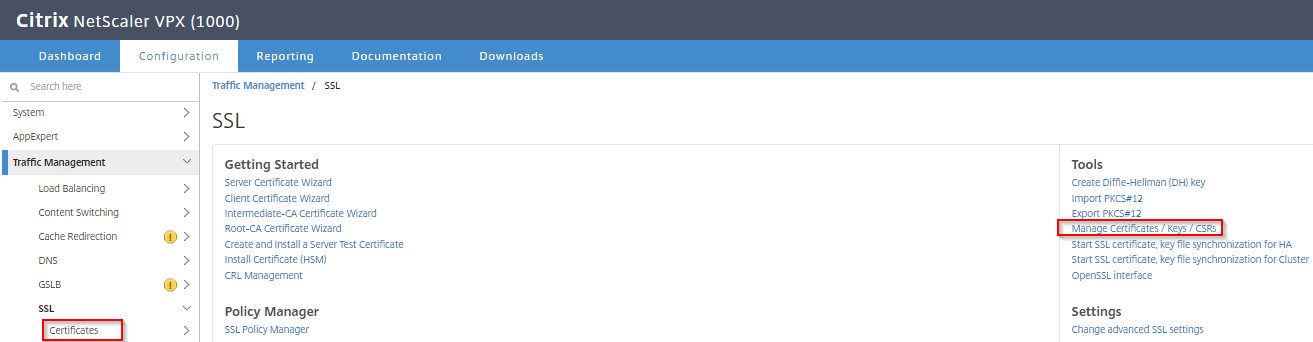

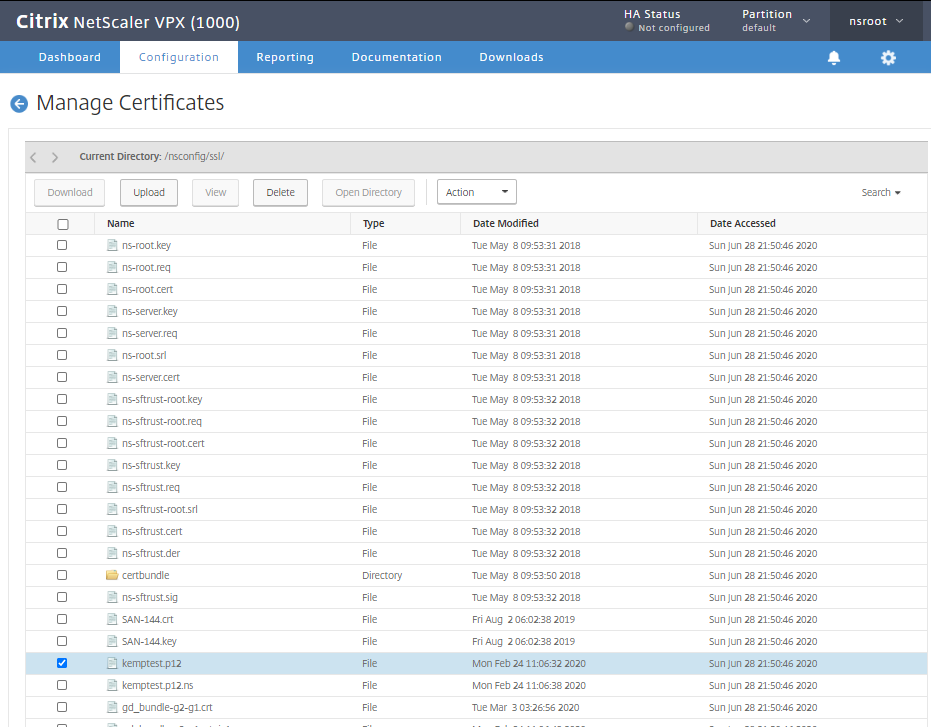

On your Citrix Netscaler navigate to: Traffic Management > SSL, click on Manage Certificates / Keys / CSRs.

Select your SSL Certificate and Download. In most cases this will be a PFX.P12 certificate, but it could also be in other formats such as “.crt” with .pem or .key.

Importing your Netscaler SSL Certificate

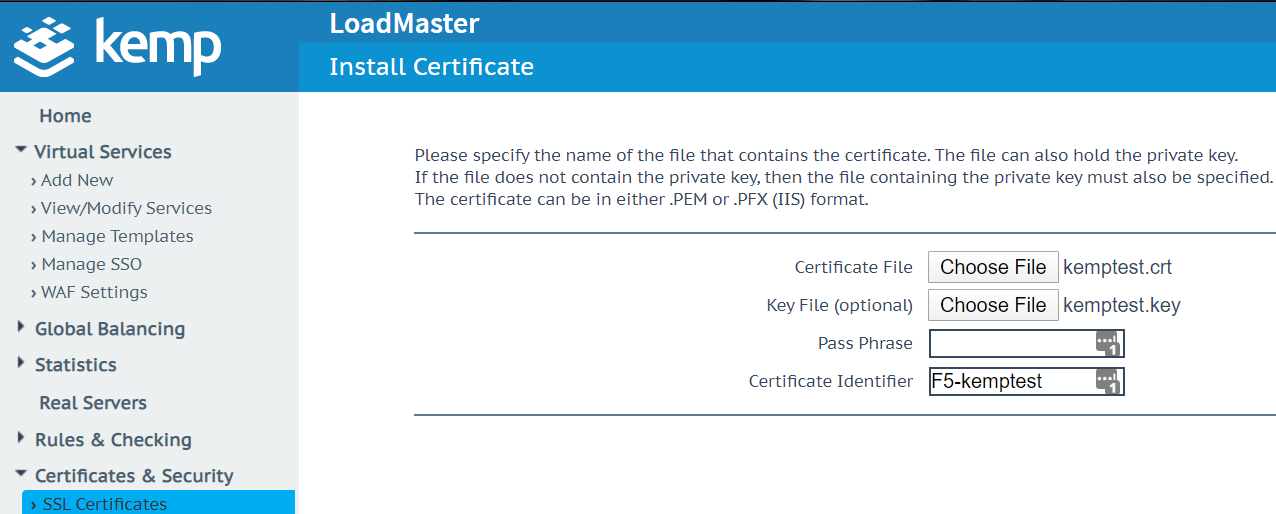

On your LoadMaster Navigate to Certificates & Security > Import Certificate.

Select your PFX certificate and enter your Pass Phrase

If you have your Private Key and CA Cert as separate files, select your .crt/.pem file,and for your Private Key file select your .key/.pem file.

Content Switching Policies Versus Content Rules

Both Netcaler & LoadMaster can direct traffic to a specific Exchange Pool by looking at the HTTP URL. Netscaler achieves this using Content Switching Policies and a Content Switching Virtual Server, whereas Kemp achieves by using Content Rules which are assigned to a Sub VS.

Netscaler OWA Content Switch Policy

  1. Create and configure Content Switching Virtual Server
  2. Create Content Switching Actions
  3. Create Content Switching Policies
  4. Bind Content Switching Policies

Expression example

HTTP.REQ.URL.CONTAINS(“/owa”)

This function is much more easily achieved on kemp by creating a simple Content Switching rule.

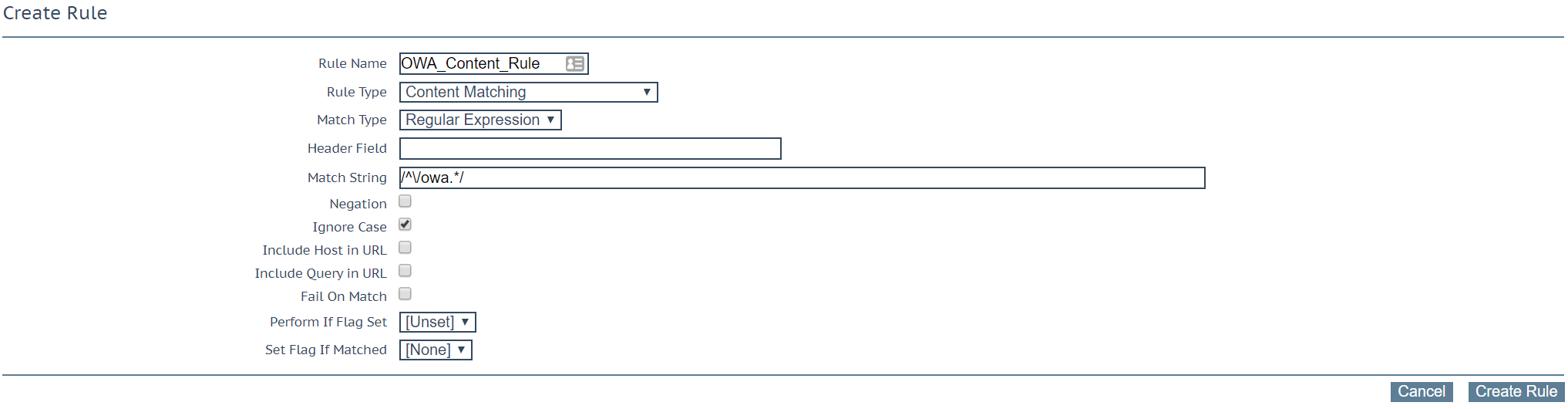

All Exchange Content Rules come as part of the template and are already associated to each Exchange Pool such as OWA & ECP. More information on Content Rules can be found here.

Virtual Service Configuration

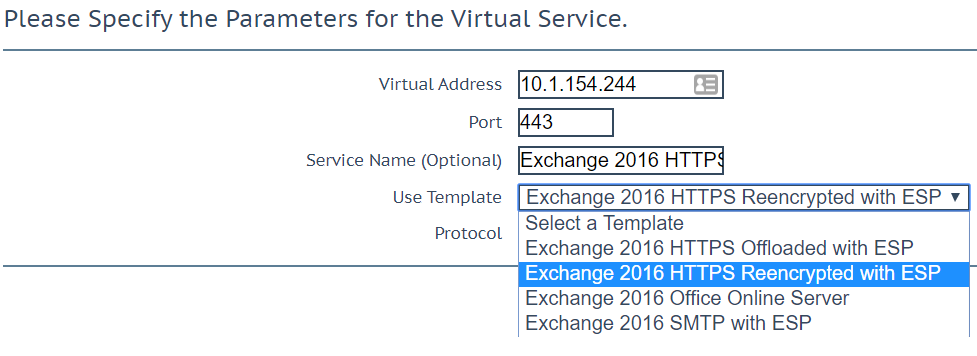

Navigate to Virtual Services > Add New > Add IP > User Template > Select Exchange 2016 HTTPs Reencrypted with ESP.

Adding Real Servers to Sub VS

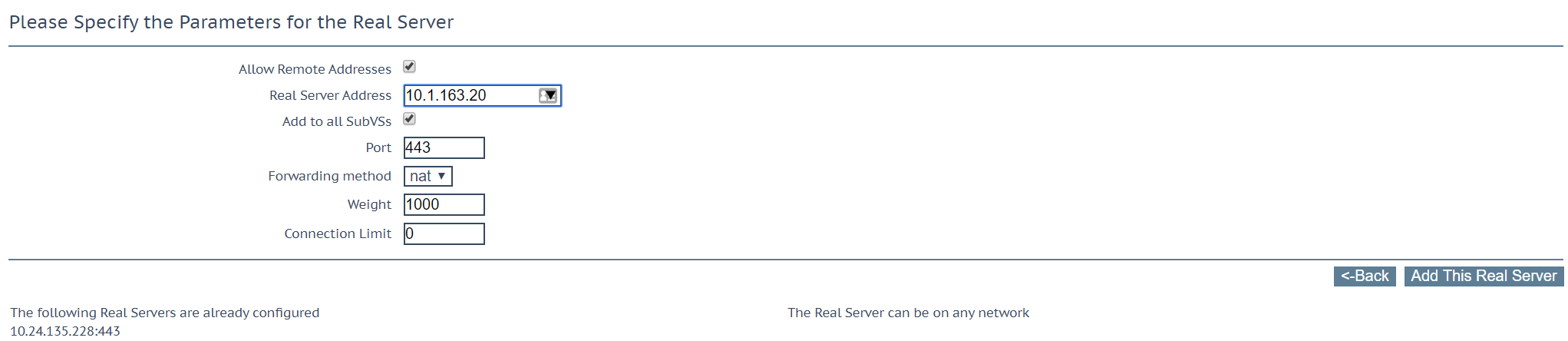

Navigate to Virtual Services > Modify Sub VS > Real Servers > Add Real Server

Check “Add to all SubVS”. This will add your server to all Exchange Sub VS such as OWA & ECP.

Netscaler Authentication Policy & kemp SSO Manager

Within the Netscaler environment, you will define a Session Policy which will bind to an AAA Authentication VServer which will eventually Bind to your Exchange Virtual Server.  Kemp LoadMaster uses similar more easily configurable logic where you will create a Single Sign On (SSO) Profile and associate it with your Virtual Service or Sub VS.

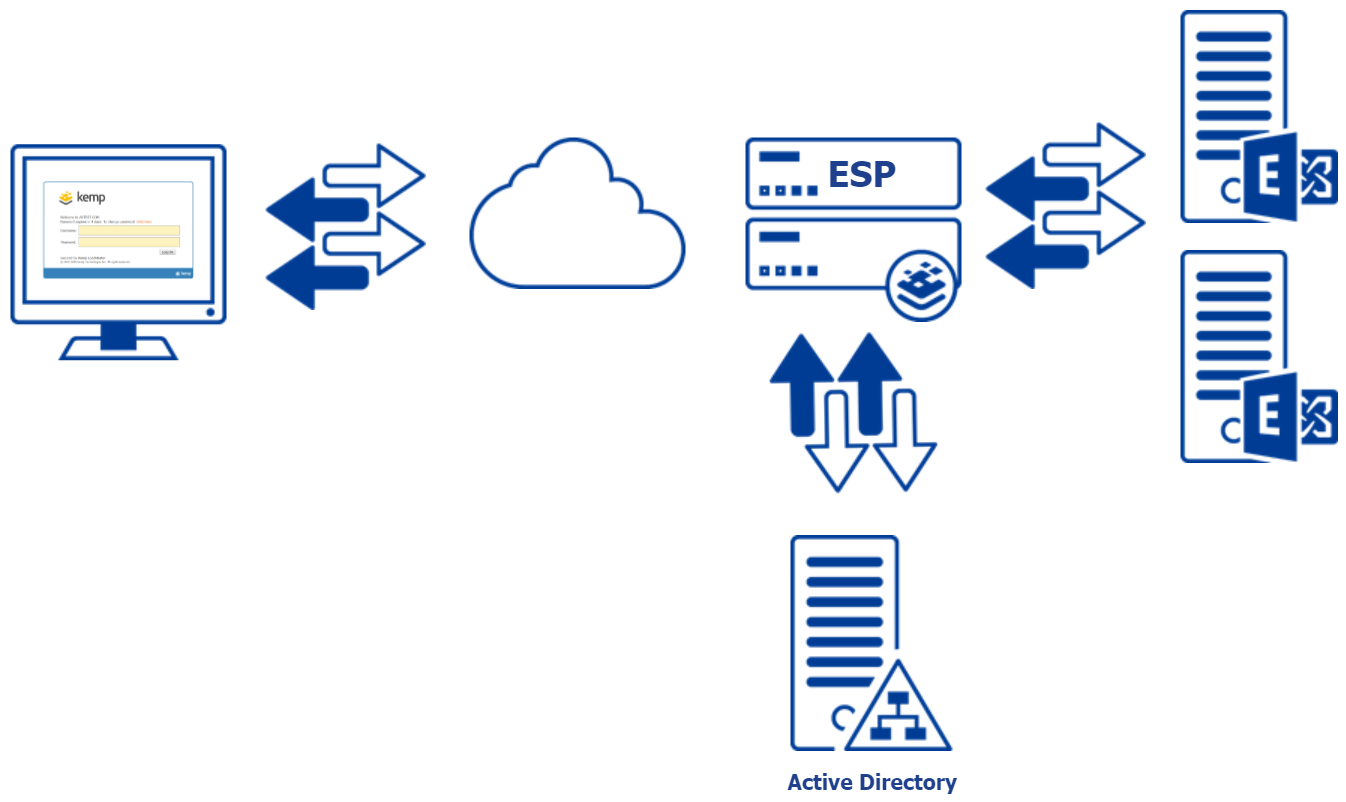

ESP High Level Overview

Create LDAP Endpoint

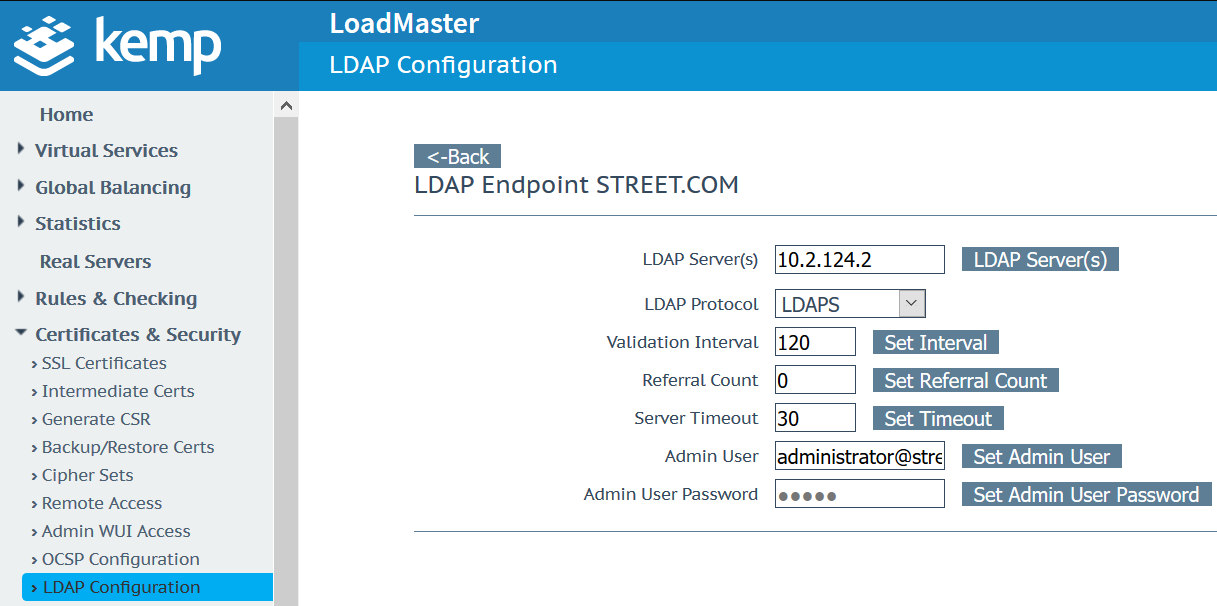

Certificates & Security > LDAP Configuration > Add new LDAP Endpoint

Create SSO Profile

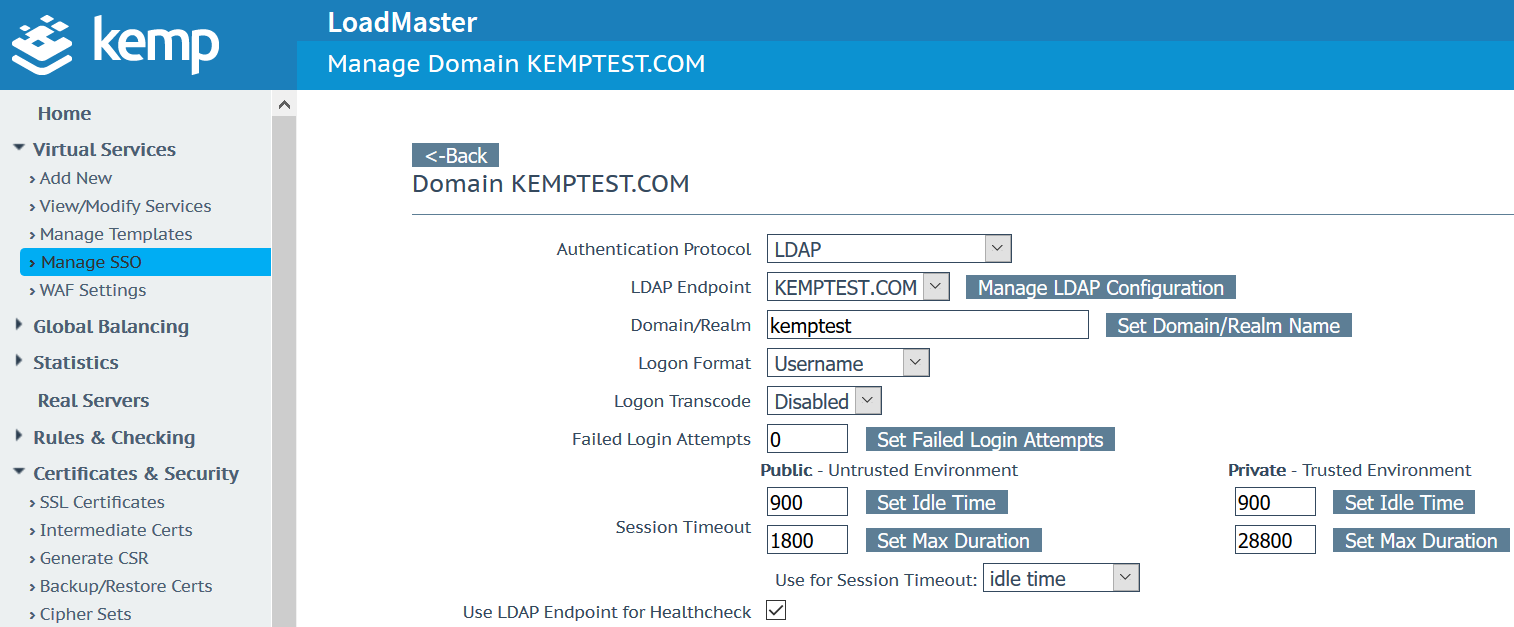

Navigate to Virtual Services > Manage SSO > Add new Client Side Configuration

Associate SSO Profile to Sub VS

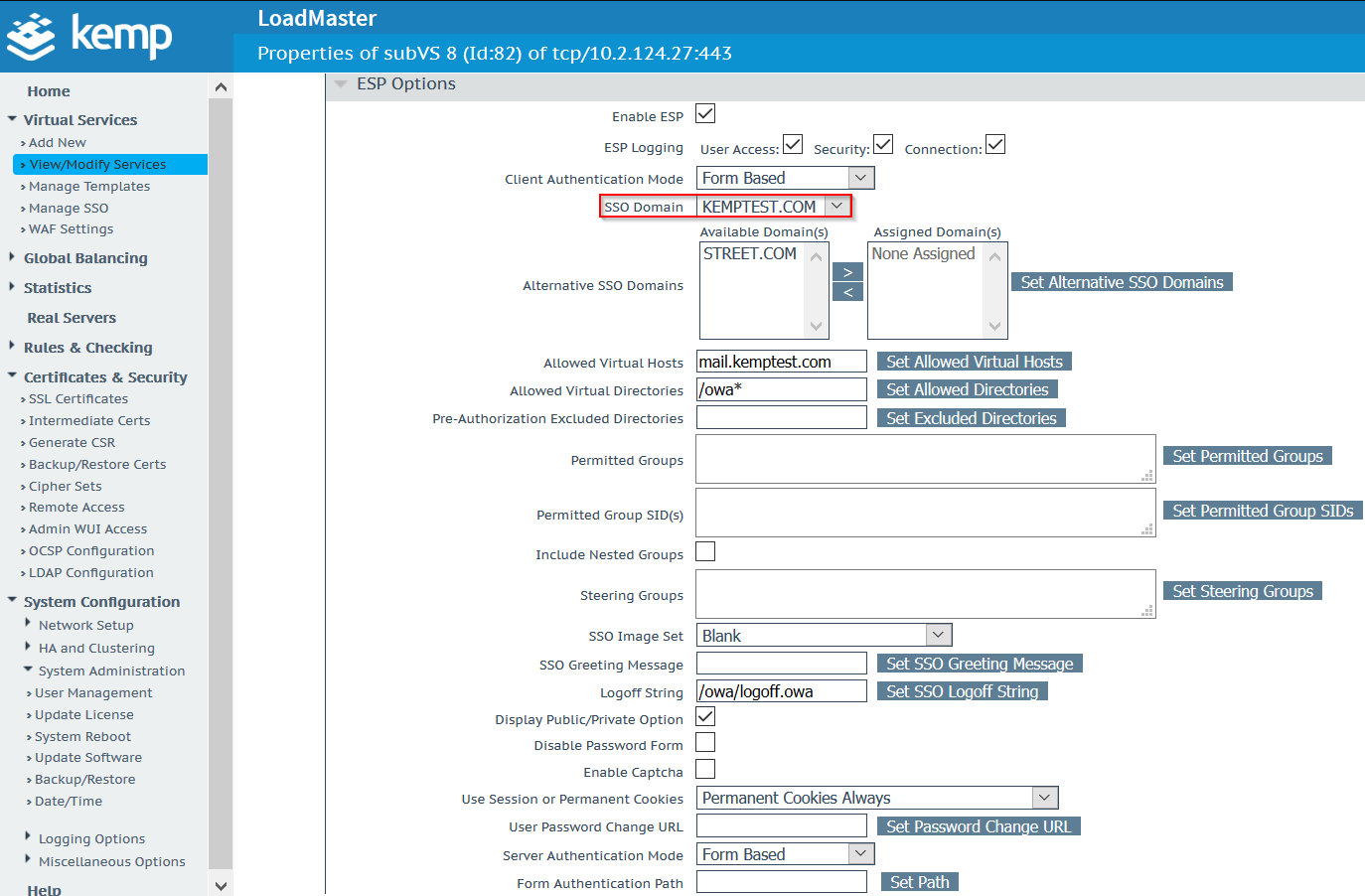

Navigate to Virtual Services > Modify > LM_auth Sub VSand OWA Sub VS and assign your previously created SSO Profile “kemptest.com”.

You will also be required to configure your Virtual Host to your FQDN. e.g, “mail.kemptest.com”.

 Finishing and Testing the Migration

Once complete, you should be able to connect to the newly created Virtual Service using your Exchange client and access the service on the Kemp load balancer in the same way you did with your Citrix Netscaler load balancer. All of the Netscaler functionality has been migrated to the Kemp solution delivering an optimal application experience (AX).

Advanced Configuration

If you would like to implement an multi-factor authentication (MFA) solution please see this blog. For additional information on specific ESP Exchange Options, please see this Knowledge Base article.

Citrix Virtual Apps & Desktops

If you are also using Netscalers Gateway feature to proxy your external Virtual Apps & Desktop connections, please see our configuration guide in how to achieve this.
